| Project owner: | Overdrive |
| Interested: | peterbay, Overdrive |
| Related: | |
| Reference: | https://en.wikipedia.org/wiki/Banana_Pi |
| License: | Uveďte původ-Zachovejte licenci; CC BY-SA |
Howto for different single-boards
- install Rabsbian on SD cards : http://elinux.org/RPi_Easy_SD_Card_Setup
- Banana Linux Home Page: https://www.bananian.org/
- howto connect to Picka and forward X server on Mac : https://www.youtube.com/watch?v=MXi-Tk1Wbpc
PI Specific tools
- rpi-update - update firmware
- rpi-config - system config
MacOSX install of Banana PI
- Banana Pi: http://www.bananapi.org/p/product.html
SemioTex:pavouk$ mount | grep -i picka1 /dev/disk3s1 on /Volumes/PICKA1 (msdos, local, nodev, nosuid, noowners) SemioTex: pavouk$ cd ~/Desktop/ SemioTex:Desktop pavouk$ ls -la *.img -rw-r--r-- 1 pavouk staff 3932160000 5 srp 2015 Raspbian_For_BPI_M1_V4.0.img SemioTex:Desktop pavouk$ sudo diskutil unmount /Volumes/PICKA1 Volume PICKA1 on disk3s1 unmounted SemioTex:Desktop pavouk$ sudo dd bs=1m if=~/Desktop/Raspbian_For_BPI_M1_V4.0.img of=/dev/disk3 * u can check progress with CTRL+T [SIGINFO] ==== Configure Mac to be able to directly conenct to Picka over ETH through trunderbolt ==== * connect thunderbolt and Picka by straight cable * system preferences on mac -> Network -> Thunderbolt: use DHCP * system preference on mac -> Sharing -> check ON Internet sharing * ifconfig: find bridge* <code> bridge100: flags=8863<UP,BROADCAST,SMART,RUNNING,SIMPLEX,MULTICAST> mtu 1500 options=3<RXCSUM,TXCSUM> ether 2a:37:37:c1:c0:64 inet 192.168.2.1 netmask 0xffffff00 broadcast 192.168.2.255 inet6 fe80::2837:37ff:fec1:c064%bridge100 prefixlen 64 scopeid 0xa Configuration: id 0:0:0:0:0:0 priority 0 hellotime 0 fwddelay 0 maxage 0 holdcnt 0 proto stp maxaddr 100 timeout 1200 root id 0:0:0:0:0:0 priority 0 ifcost 0 port 0 ipfilter disabled flags 0x2 member: en5 flags=3<LEARNING,DISCOVER> ifmaxaddr 0 port 9 priority 0 path cost 0 nd6 options=1<PERFORMNUD> media: autoselect status: active
- use nmap to find where you have Picka [or you can try to find it as next to bridge ip]
- Scan for every TCP and UDP open port:
sudo nmap -n -PN -sT -sU -p- remote_host
SemioTex:Picka pavouk$ nmap 192.168.2.* ### more extensive nmap: nmap -p0- -v -A -T4 192.168.1.* Starting Nmap 6.47 ( http://nmap.org ) at 2016-03-13 14:47 CET Nmap scan report for 192.168.2.2 Host is up (0.0017s latency). Not shown: 999 closed ports PORT STATE SERVICE 22/tcp open ssh
MacOSX Backup & restore Banana PI SD card
Backup
# to list partitions diskutil list #/dev/disk4 (internal, physical): # #: TYPE NAME SIZE IDENTIFIER # 0: FDisk_partition_scheme *7.9 GB disk4 # 1: Windows_FAT_32 boot 58.7 MB disk4s1 # 2: Linux 7.9 GB disk4s2 #in our case it was /dev/disk4 #CTRL+T as SIGINFO could be used to check progress sudo dd if=/dev/disk4 bs=1m | gzip > ~/1_Labka/banana_picka_25.5.2016.img.gz
example how to copy backup by scp
copy to remote host
scp ~/1_Labka/banana_picka_25.5.2016.img.gz user@remotehost:/home/share/Picky_Backup/
copy to localhost
scp your_username@remotehost:/home/share/Picky_Backup/banana_picka_25.5.2016.img.gz /some/local/directory
Restore
- remember, SD card should be unmounted
# first check where SD card is visible, but not mounted by diskutil list # let it be again /dev/disk4 gzip -dc ~/1_Labka/banana_picka_25.5.2016.img.gz | sudo dd of=/dev/disk4 bs=1m
remove password to ssh
https://wiki.archlinux.org/index.php/Banana_Pi#Network
- ssh root@IP
- password is bananapi
mkdir ~/.ssh chmod 700 ~/.ssh touch ~/.ssh/authorized_keys chmod 600 ~/.ssh/authorized_keys
example of generating key to non standard position
over@darkstar>mkdir ~/ssh_tmp ssh-keygen -t rsa -C "tpetru@gmail.com" -f ~/ssh_tmp/id_rsa_na_jine_misto Generating public/private rsa key pair. Enter passphrase (empty for no passphrase): Enter same passphrase again: Your identification has been saved in /home/over/ssh_tmp/id_rsa_na_jine_misto Your public key has been saved in /home/over/ssh_tmp/id_rsa_na_jine_misto.pub. The key fingerprint is: SHA256:hriECJShFg+8AKVHVkoqYtBknvhf/sGW+KQr4wqtEUE tpetru@gmail.com The key's randomart image is: +---[RSA 2048]----+ |=EX.. | |*%=o | |@o*. | |** . . . | |o o o o S | | o o + + . | |o . o o * | | + o * . | |. .o.oo.o | +----[SHA256]-----+
nano ~/.ssh/authorized_keys <--- copy there public key generated somewhere
this is what you should have:
drwx—— 2 root root 4096 Mar 13 13:23 .ssh
-rw——- 1 root root 209 Mar 13 13:21 authorized_keys
nano /etc/ssh/sshd_config -> PasswordAuthentication no sudo service ssh restart
test by:
ssh root@localhost
if it is asking for key, everything is ok !!! do not disconnect from session before test from outside !!! try from outside:
ssh root@IP_of_pi
when able to connect by key, everything is fine
create ~/.ssh/config for labka
touch ~/.ssh/config chmod 110 ~/.ssh/config
* add there this block of code; user needs to be correctly set up:
Host labka
user [SOME USER PICO]
hostname 193.84.207.21
ForwardX11 yes
* next time, you can connect to server by
ssh labka
instead of
ssh [some_user]@193.84.207.21
add user to wheel group [grant him sudo]
usermod -aG wheel username
Change colour of shell
nano ~/.bashrc
edit to something like this 31m is red:
PS1='\[\e[1;31m\][\u@\h \W]\$\[\e[0m\] '
Resize SD card
raspi-config –expand-rootfs
Timezone
tzselect
Install basic tools
aptitude install lsof

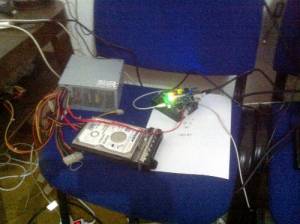

Run Banana PI from SATA
SDR
Pulseaudio
sudo apt-get install pulseaudio pulseaudio-module-zeroconf alsa-utils avahi-daemon pulseaudio-module-zeroconf pulseaudio-utils
The following is what I did just to get it working in per-session mode (not system mode). System mode may work as well, I haven't attempted it. Setting up server will require some more work. I found this information in various places, hopefully gathering it here will help someone.
Install pulseaudio and make sure user (e.g. over) is part of the audio group:
sudo adduser over audio
Change /etc/asound.conf look like the following. This sets up pulseaudio to be used as an alsa device by default so applications use it without any additional configuration. The first two declarations (including the commented one) was in the original file.
pcm.mmap0 {
type mmap_emul;
slave {
pcm "hw:0,0";
}
}
pcm.pulse { type pulse }
ctl.pulse { type pulse }
pcm.!default { type pulse }
ctl.!default { type pulse }
Add the following lines to /etc/pulse/daemon.conf:
default-sample-rate = 48000 resample-method = trivial
OVERDRIVE'S CONFIG TO MAKE IT RUN
sudo nano /etc/pulse/default.pa
.nofail .fail load-module module-device-restore load-module module-stream-restore load-module module-card-restore load-module module-augment-properties load-module module-switch-on-port-available load-module module-pipe-sink .ifexists module-udev-detect.so load-module module-udev-detect .else load-module module-detect .endif .ifexists module-jackdbus-detect.so .nofail load-module module-jackdbus-detect channels=2 .fail .endif .ifexists module-bluetooth-policy.so load-module module-bluetooth-policy .endif .ifexists module-bluetooth-discover.so load-module module-bluetooth-discover .endif .ifexists module-esound-protocol-unix.so load-module module-esound-protocol-unix .endif load-module module-native-protocol-unix .ifexists module-gconf.so .nofail load-module module-gconf .fail .endif load-module module-default-device-restore load-module module-rescue-streams load-module module-always-sink load-module module-intended-roles load-module module-suspend-on-idle .ifexists module-console-kit.so load-module module-console-kit .endif .ifexists module-systemd-login.so load-module module-systemd-login .endif load-module module-position-event-sounds load-module module-role-cork load-module module-filter-heuristics load-module module-filter-apply .ifexists module-x11-publish.so .nofail load-module module-x11-publish .fail .endif set-default-sink output set-default-source input
To start the pulseaudio server, use:
pulseaudio -k; pulseaudio -D
You might be also be able to set up in system-wide mode with:
sudo pulseaudio --system
To debug, run:
pulseaudio --log-level=debug
To test alsa, run:
amixer -Dpulse
